The RPHZ series of hazardous location running man signs are designed to meet and exceed the most stringent code requirements. The housings are made from copper free, heavy-duty die cast aluminum. The frame and faceplate(s) are manufactured in heavy gauge steel with a white, baked powder coat finish. The signs can be specified to suit a variety of mounting options including ceiling, wall and pendant mount.
- LED ultra bright light source
- 120/277/347 VAC Input, field selectable
- 1.9 W power consumption single or double face
- Emergency DC wattages as follows: 6 VDC = 0.9 W, 12 VDC = 0.9 W, 24 VDC = 0.9 W
- Copper free, heavy-duty die cast aluminum

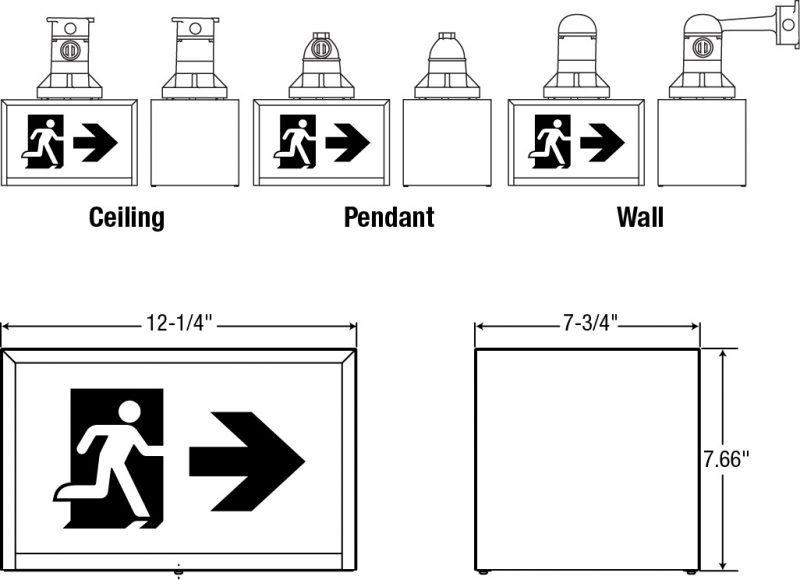

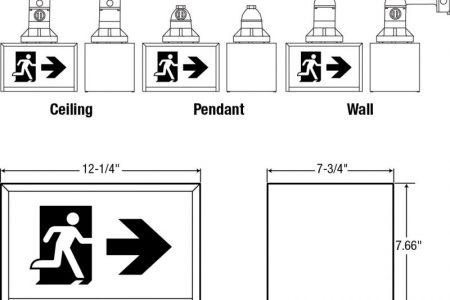

- Universal faces – Universal mounting : ceiling mount, wall mount, end mount
- White powder coat finish standard, or raw aluminum finish (depends on rating /type)
- CSA Certified to C22.2 #137
- CSA Certified to C22.2 #141-15
- CSA Certified to C860-11
- Class I, Division 1 & 2, Groups C & D
